Thermal Balancing Valves
Lead Free Products
RMC’s Thermal Balancing Valves are thermostatic circuit control valves which automatically control the temperature within a circulating hot water system to ensure a balanced water temperature throughout
the system.
Available in 15mm and 20mm configurations, the valves are adjustable from 40°C to 65°C, and are factory set at 58°C.
- Easy temperature adjustment between 40°C and 65°C
- Tamper-proof cap
- Built-in disinfection function to protect against Legionella
- Dry-fit push in thermometer
- Supplied with insulation
- Meets Australian Standard for potable water supply
- Individually tested and calibrated
- Every valve is tested to ensure higher quality and performance

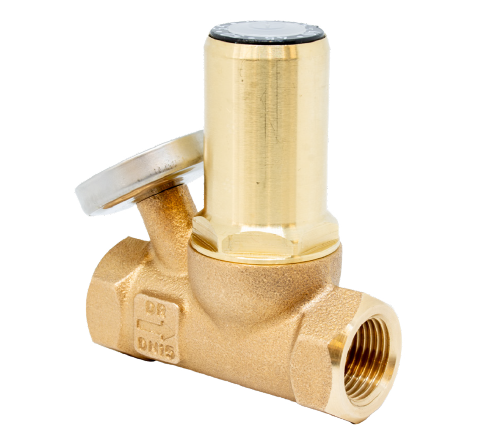

TBX01
15mm
TBX02
20mm

ATS 5200.468:2019
WMK25991
Legacy Products
TBV501
15mm
TBV701
20mm

ATS 5200.468:2019
WMK25991

TBX01
